ebm‑papst reimagines
Data center power density is on the rise
The rise of generative AI and high-performance computing has been driving the growth of rack power density in data centers. Respondents are reporting increased rack power density over the past 3 years.*
- 80% of enterprise data center owners/operators
- 81% of cloud/hosting/SaaS providers
- 89% of colocation/data center providers
*Sources: Statista+ desk research
The transformative role of liquid cooling
New liquid cooling technologies can provide higher cooling capacity, although implementing liquid cooling systems often requires high costs and long deployment times.
- ebm‑papst's new fans for liquid-to-air (L2A) systems are cost-effective and easier to implement, all the while offering greater cooling capacity and higher efficiencies.
Best-in-class cooling solutions get even better
As the leading supplier of ventilation and cooling technology, ebm‑papst has been at the forefront of data center cooling, combining energy efficiency with high power density.
AxiEco 200
for in-row cooling and RDHx
- Up to 9% more airflow and 7% more efficiency than fans of the same size.
- Up to 8,000 rpm. Extremely compact and powerful.
- Smart features for increased operational reliability and service life.
- High torque for smooth start-up after standstill, even with high back pressure.
RadiPac
for coolant distribution units
- Assemblies 280 to 800 in different designs for wide applications.
- Versatile EC motor portfolio significantly increases power density at the same footprint.
- Optimal interaction of the entire fan system, consisting of impeller, motor, and electronics enables energy-efficiency and silent operation.
- Passive and active PFC solutions minimize current harmonic distortions, resulting in lower costs for power components and emergency power supply.
- Easy implementation of condition monitoring, predictive maintenance and self-optimization through configurable control interface.
RadiCal 2
for RDHx and L2A
- Higher air throughput thanks to new application-specific impeller dimensioning.
- Further optimized noise behavior.
- Compact design and new sizes for optimal power density.
- Power consumption reduced by up to 18% for the same operating point and long service life for maximum profitability.
High power density with small footprints
As the leading fan supplier, ebm‑papst strives to strengthen the product offerings for data center applications continuously. ebm‑papst's best-in-class product lineup builds on the company's cooling expertise and offers the following benefits:
Reliability and durability
Instant energy savings
High static efficiency
Modular product implementation
Plug & play
Long-term cost reductions

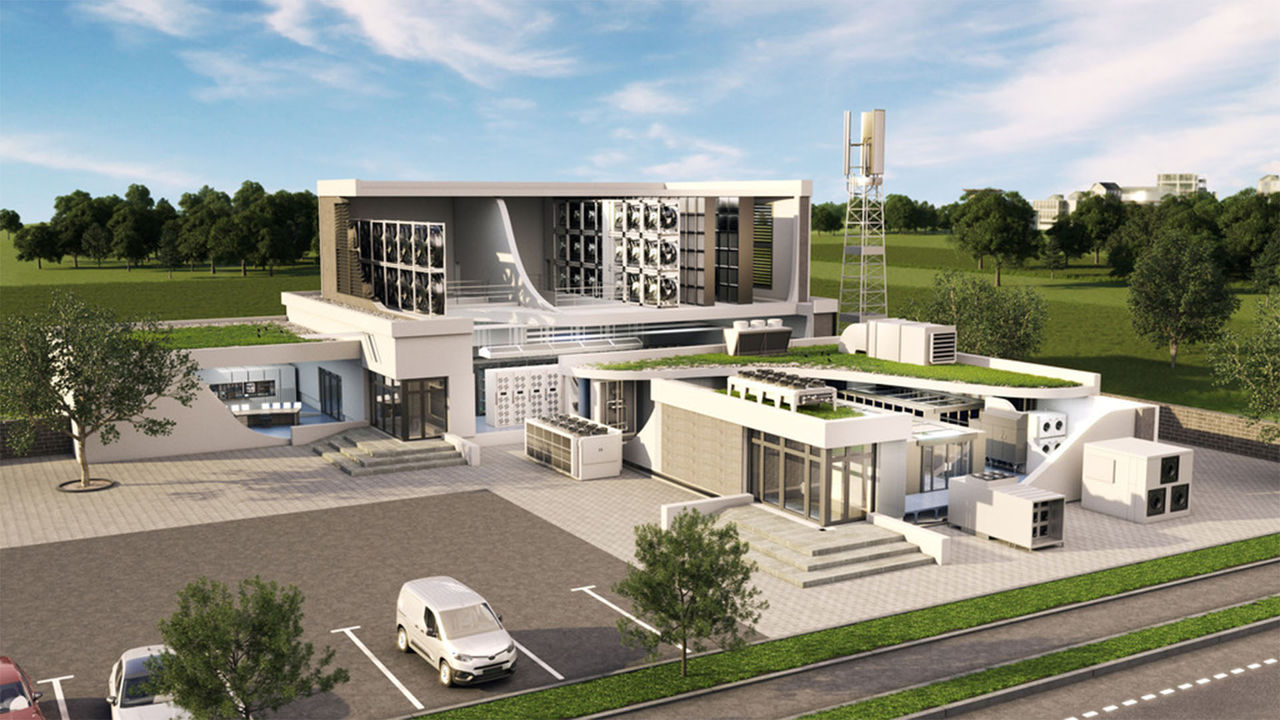

All data center
cooling applications
With high power density and high efficiency, our fans help to cool new servers in the most efficient way. This helps OEMs, providers, and planners to reduce enegy costs while achieving maximal performance.
UPS - Uninterrupted Power Supply
Keep your data center cooling on via a UPS solution in the event of power outages. Fans that support UPS energy:
- AxiForce
- AxiTwin 100
- DiaForce
- S-Force
BMS - Building Management System
The ebm‑papst Data Center Infrastructure Management (DCiM) platform collects fan sensor data and provides:
- Real-time information
- Real-time control over cooling
- Increased energy efficiency
- Lower CO2 emissions
Exhaust FanGrid
Easily organize multiple fans in series or in parallel for higher air volume and larger ventilation. Fans for this application:
- AxiBlade
- AxiCool
- HyBlade
- AxiTop
Supply/circulation FanGrid
Get higher efficiency for dense server racks via a network of fans in a closed circuit of recirculated cooled air. Fans for this application:
- RadiCal
- RadiPac (model with resonance detection available)
Rear door heat exchanger (RDHx)
RDHx absorb and remove heat from the exhaust air. This cooling method enables high-density cooling without increasing room-level airflow. Solutions for this application:
- RadiCal
- AxiEco 200
In-row cooling
Target hot spots between server racks by directly cooling the areas with the highest temperatures. Fans for this application:
- AxiEco 200
- RadiCal
- AxiEco Perform & Protect
High density chiller
A highly specialized cooling system that uses a refrigeration cycle to remove heat via liquid-to-air cooling. Fans for this application:
- AxiBlade
- HyBlade
- AxiEco Perform & Protect
Dry cooler
Dry coolers cool water or a water-glycol mix with ambient air. The cooled liquid then absorbs heat from the data center. Fans for this application:
- AxiBlade
- AxiTop
Condenser
Condensers remove heat from cooling systems by transferring it to air or water. Fans for this application:
- AxiEco Perform & Protect
- AxiBlade
- AxiCool
- HyBlade
- AxiTop
AHU
Air Handling Units cool the air with chilled water or refrigerant. The cooled air maintains optimal temperature and humidity levels. Fans for this application:
- RadiFit
- RadiPac
Server rack
Use direct cooling solutions like air and liquid to target specific hot spots and maintain efficient airflow. Fans for this application:
- RadiCal
- AxiTwin 100
- DiaForce
- S-Panther
Indoor AHU
Maintain stable airflow and humitidy levels for servers by cooling the air using chilled water or refrigerants. Fans for this application:
- RadiCal
- RadiPac
Cooling tower
Cooling towers remove heat from the water used in data center cooling systems by releasing it into the atmosphere. Fans for this application:
- AxiBlade
- HyBlade
CRAC Unit
CRAC (Computer Room Air Conditioner) circulates chilled air around servers and equipment. It uses refrigeration to maintain the ideal temperature and humidity. Fans for this application:
- RadiCal
- RadiFit
- RadiPac
CRAH
A Computer Room Air Handler maintains temperature and humidity levels by circulating cooled air through the data center. Fans for this application:
- AxiBlade
- RadiPac
Overhead cooling module
An overhead cooling module capture and remove hot air directly at the source, improving airflow management and reducing energy consumption.
- AxiBlade
- AxiTop diffuser
CDU cooling
A Coolant Disitrubtion Unit regulates and circulates coolant between the heat-generating equipment and external heat exchangers in liquid cooling systems. Fans for this application:
- RadiPac
Contact
How can we help you increase the energy efficiency and profitability of your cooling processes for future-proof and sustainable operation?
