FanGrids - the air kit

Energy-efficient FanGrids as a ready-to-install complete solution for large air volumes

Multiple fans for greater reliability

In FanGrids, multiple small fans operate in parallel, rather than having one large fan. This provides redundancy, ensuring fail-safe operation. What's more, multiple, adjustable fans can adapt more easily to the actual air performance that is required, meaning that they increase the efficiency levels at every operating point. As optimum design is particularly important when planning FanGrids, ebm-papst is always pleased to offer customers the appropriate assistance.

FanGrid

The advantages of fans from ebm‑papst in FanGrids:



  • Great overall efficiency
  • Low noise emissions
  • Optimized outflow characteristics for ideal flow control
  • Compact design
  • Stepless speed control characteristics

Energy-efficient EC centrifugal fans for modular FanGrid solutions

Configure your FanGrid with just a few clicks:

Form - Request form FanGrid - ebm-papst
  1. open and fill in the inquiry form.
  2. Click on "Send request" at the end of the form.
  3. send document as e-mail attachment - done!

Read all the details

Brochure - FanGrid design kit - ebm-papst

Brochure FanGrid
including characteristic curves, dimensions and performance data

Whitepaper - FanGrid - ebm-papst

Whitepaper FanGrid
including automatic resonance detection and energy-efficient EC technology with convenient closed-loop control

Areas of application for the
RadiPac FanGrid

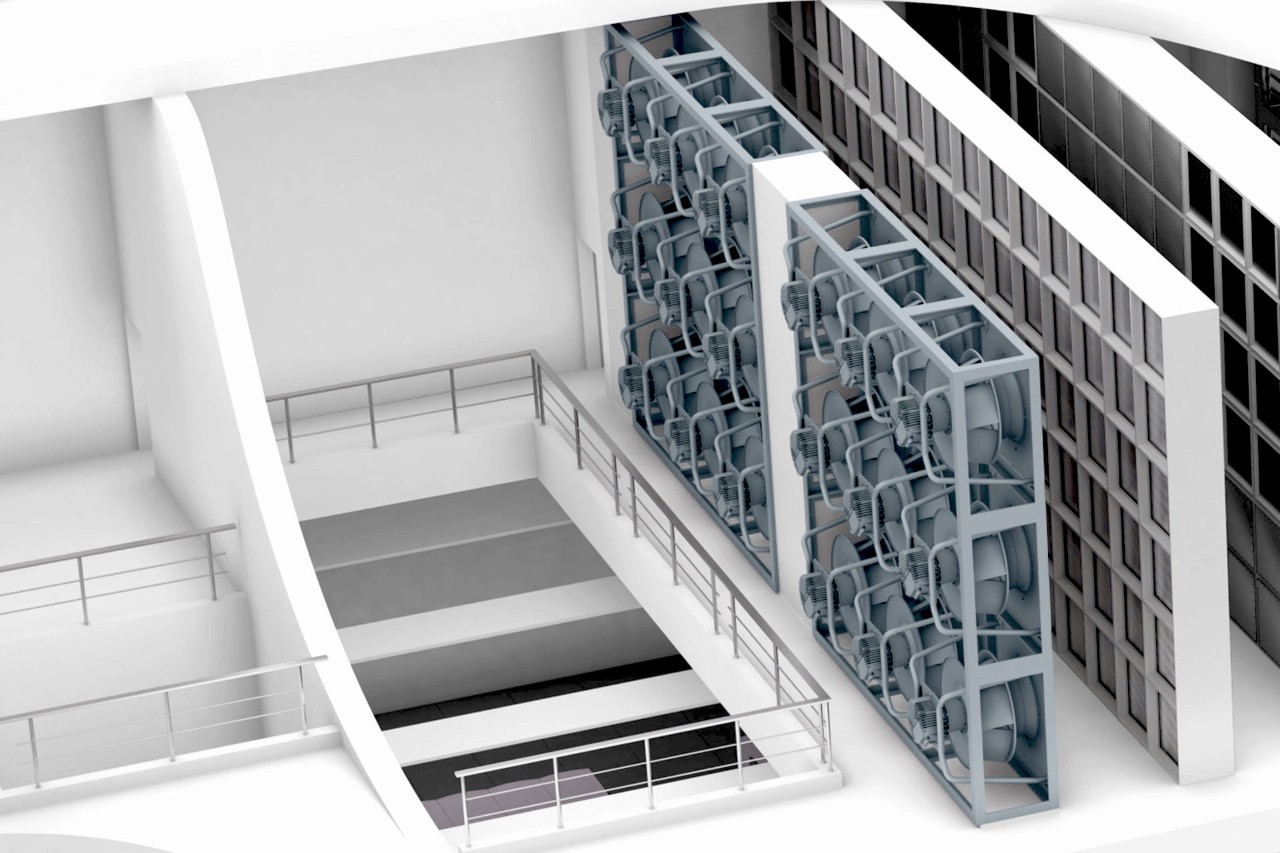

“Free cooling” is growing in popularity among data center operators. This is where multiple GreenTech EC centrifugal fans from the RadiPac or RadiCal product range operate in parallel to supply the necessary volume of air – with a high level of efficiency.

EBM_RadiPac_FanGrid_Rueckansicht

Tutorial video: Assemble FanGrid yourself

Learn in the five-minute video how to assemble the RadiPac modules and join them together to form the compound.

Please accept marketing cookies to display the youtube video.

RadiPac3 composite

RadiPac

RadiPac EC centrifugal fans offer a whole range of outstanding features, from high efficiency levels to simple handling and compact dimensions.

Find out more

AxiBlade fan in housing, slight lateral view, with reflection

AxiBlade

The new, revolutionary fan concept gets top marks for its efficiency and noise levels.

Find out more

Axialfan diffuser

Axial fans with integrated diffuser

Our aerodynamically optimized axial fan with integrated diffuser

Find out more

Produktbild_RadiCal

RadiCal

The latest generation of RadiCal EC centrifugal fans is more efficient, more powerful, and quieter than ever before – all that with the same compact installation dimensions.

Find out more

Correct FanGrid design

EC fans for cooling data centers efficiently.
